Company Switch

The power distribution systems of many facilities such as theaters, convention centers, arenas and auditoriums often require specialized panelboards for connection of portable electrical equipment. The electrical power for these temporary systems is fed by a specialized distribution panel, commonly known as a “company switch”.

Company_Switch_CSC0610CL3R

The simplest switch has just the
basics for powering portable power distribution loads.
It consists of a Type 3R
enclosure, main circuit breaker, receptacles and
phase indicator lights.

Outdoor Company Switch Products
Company_Switch_CSC1010CL-002

Company Switches for power distribution systems serve many facilities such as theaters, convention centers, arenas and auditoriums that often require specialized panelboards for connection of portable electrical equipment.

Indoor Company Switch Products

Menu

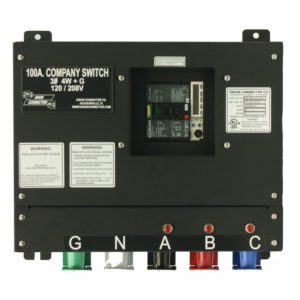

Basic Company Switch with Series 16 Cam-Lok Receptacle – 100 Amp

by

Company Switch Highlights

  • Company_Switch_CSC1010CL-002SKU CSC-1010-CL
  • Electric power distribution center for theatre, convention centers, arenas, schools, churches, and events centers
  • Series 16 Cam receptacles
  • Color-coded snap-back covers
  • 100A. Main breaker rated 65K AIC
  • Latest version of the world’s first UL Listed Company Switch that was designed in 1986 by Union Connector

Product Description

Basic Company Switch with Series 16 Cam-Lok ( 100 Amp ). This UL Listed company switch has the basics for powering portable power distribution loads. It consists of a Type 1 enclosure, main circuit breaker, receptacles and phase indicator lights. The Series 16 cam-lok devices are designed to provide superior service and durability, even under the most severe operating conditions. The Series 16 receptacles are provided with snap back protective covers, and mounted on the receptacle panel at bottom of the enclosure.This switch is perfect as a electric power distribution box for theatres, convention centers, arenas, schools, churches, and events centers.

Company Switch Main Enclosure:

  • TYPE 1
  • Steel, black wrinkled powder-coat finish
  • Wall mounting brackets.

Series 16 Cam-Lok 100 Amp Dimensions:

  • 15 1/2”H.  x 18”W. x 6 1/2” D.

Series 16 Cam-Lok 100 Amp Output:

  • (5) Series 16 Cam panel mount color coded receptacles with snap-back protective covers.

Monitoring:

  • LED Indicator lights to indicate presence of phase voltage.

Labeling:

  • Laser engraved cam identifiers and panel rating.
  • Cable connection warning label per NEC Art 520.

Series 16 Cam-Lok 100 Amp Rating:

  • 100A.
  • 120/208V.
  • 3Ø, 4W+G

Circuit Breakers:

  • Molded-case
  • UL489
  • 65K AIC @ 240V.
  • (1) 100A.
  • 3-pole

Series 16 Cam-Lok 100 Amp Listing:

  • UL Listed

Options:

  • Reverse Neutral/Ground
  • Dual neutral
  • Parallel sets of receptacles
  • Isolated Ground
  • 1Ø – 120V., 120/240V.,
  • 3Ø – 277/480V., 208V., 480V.
  • Digital Meter
  • Custom color finish
  • Recessed or Pad mounting
  • Type 3R, 4 or 4X enclosure
