Multiple Breaker Company Switch Highlights
- Electric power distribution center for theatre, convention centers, arenas, schools, churches, and events centers
- Series 16 Cam or SafeCam® receptacles
- Multiple Branch breakers rated 65K AIC
- Dual Neutral (200%)
- The most efficient design for multiple feeder circuits

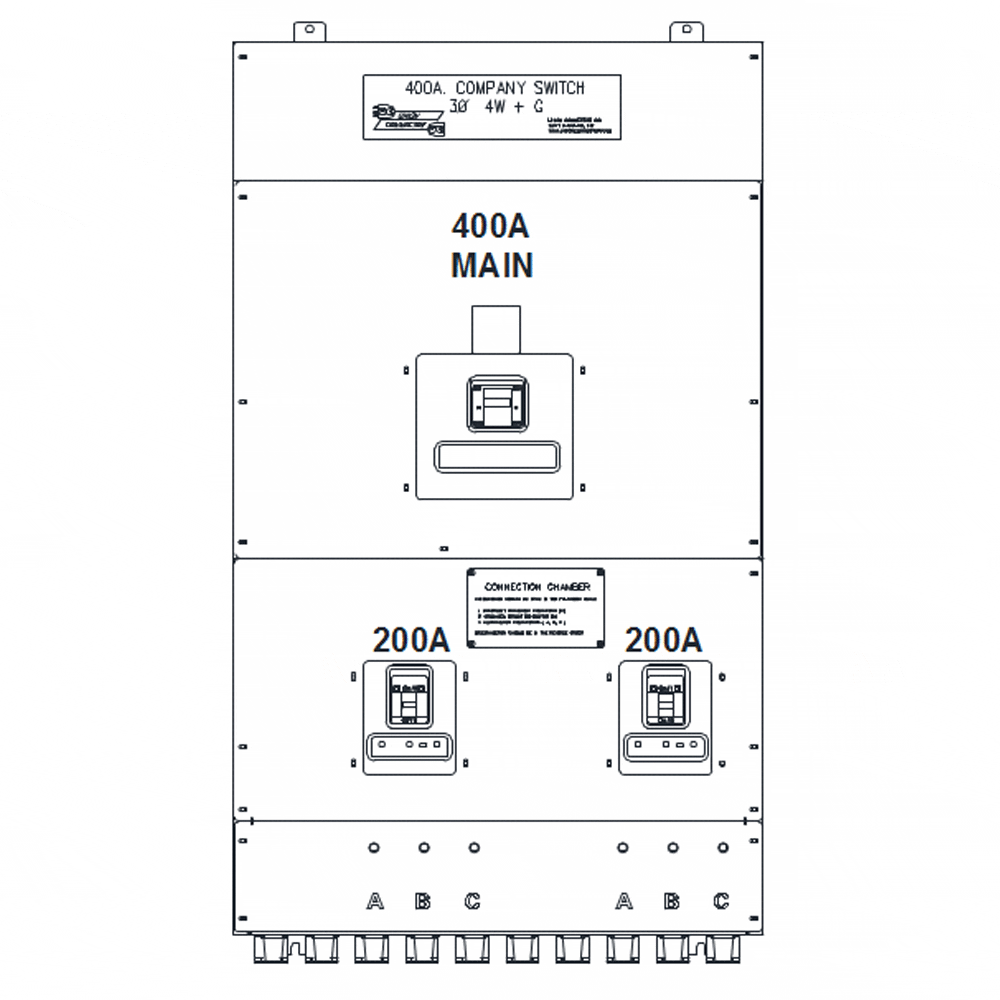

This MCB Company Switch contains two or more branch breakers in a single enclosure. These branch circuits are protected by a “main breaker” that is fed by conduit. This provides a disconnecting means for multiple sets of outlets, each with its own branch breaker protecting the outlets.
MCB installation is simpler and less expensive than traditional switches. The MBCS installation requires only a a single conduit run, and one enclosure to mount on the wall. Installing the multiple breaker switch is thereby more cost-effective than the traditional cost of installing two separate company switches with separate conduit runs.
Main Breakers and Branch Breakers
Main breakers and Branch breakers are contained in this version of a multi-breaker company switch. The addition of a main breaker affords several advantages to versions with just a main bus. The first advantage is reduction of the size/expense of upstream panelboards. The ability to exert “local” control of the entire Company Switch through the use of the Main breaker is another advantage.
Includes Either Series 16 Cam or SafeCam®
The standard MBCS version contains either Series 16 Cam receptacles or SafeCam® receptacles that are color coded, mounted on an internal dead front receptacle panel and provided with snap back protective covers. The Series 16 Cam devices are designed to provide superior service and durability, even under the most severe operating conditions. The SafeCam® receptacles, which also accept Series 16 Cam plugs, provide an added level of safety. They are interlocked with the branch break shunt trip and cause the breaker to trip unless there is a plug in each outlet. There can never be a “hot” exposed outlet.
The multiple breaker company switch is perfect for electric power distribution in theatres, convention centers, arenas, schools, churches, and events centers.
Multiple Breaker Company Switch Main Enclosure:
- TYPE 1
- Steel, black wrinkled powder-coat finish
- Wall mounting brackets
Multiple Breaker Company Switch Dimensions:
- contact factory for more information
Multiple Breaker Company Switch Output:
- Multipe sets of panel mount receptacles.
- LED Indicator lights to indicate presence of phase voltage.
- Laser engraved cam identifiers and panel rating.
- Cable connection warning label per NEC Art 520.
- 100A. to 800A.
- Single or Three Phase
- Main breaker
- Multiple Branch breakers
- UL489, 65K AIC @ 240V.
- UL Listed
